Description: Learn how to set up and configure the Customer-Facing Display (CFD) and specify the correct payment device on your SkyTab POS to ensure accurate customer interaction and payment processing.

Note: If you haven’t yet installed your Customer-Facing Display (CFD), install and connect it first before configuring it in the POS system.

Enable the CFD on SkyTab POS

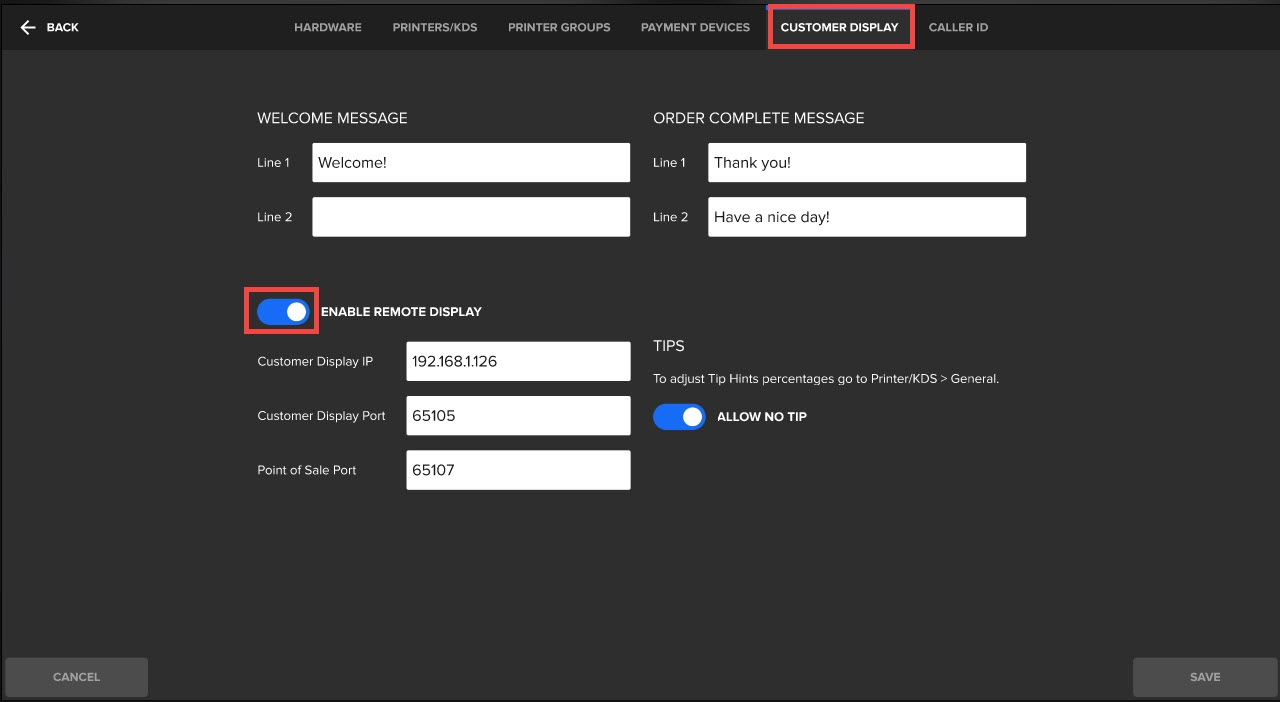

1. On SkyTab POS, go to Manager > Settings > Hardware > Customer Display.

2. Select Enable Remote Display.
3. The default values should be:
   • IP: 127.0.0.1
   • Customer Display Port: 65105
   • POS Port: 65107
     Select the desired field and enter the correct value if the current value is incorrect.
4. Select Save.

Specify the Payment Device

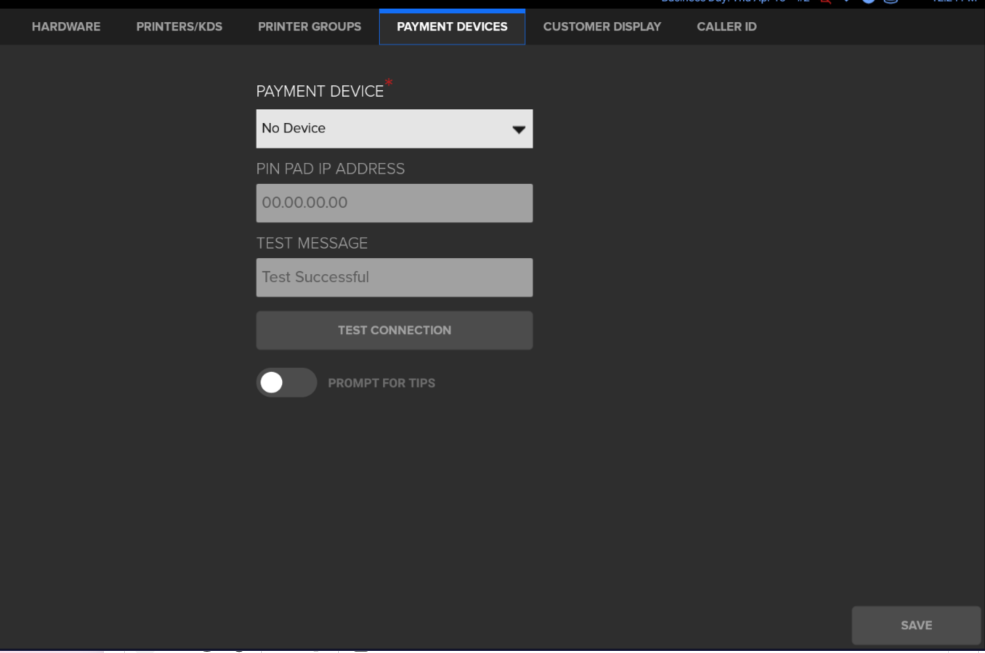

1. Go to Manager > Settings > Hardware > Payment Devices and select the dropdown for "Payment Device."

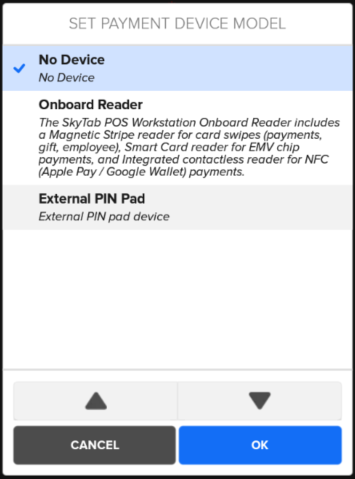

2. Select External PIN Pad if you are using an external PIN Pad, and Onboard Reader if you are using L1400.

3. Select Ok and then Save.
